Architecture

Here we give a brief description of the underlying infrastructure of the application. Five microservices were implemented, one of them being the API Gateway.

Microservices

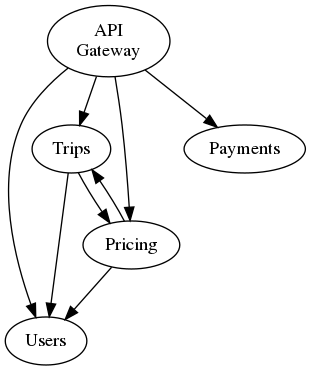

Here’s a global overview of message sending between microservices.

digraph {
gateway [label="API\nGateway"];
users [label="Users"];
trips [label="Trips"];
pricing [label="Pricing"];
payments [label="Payments"];

gateway -> users;
gateway -> trips;
gateway -> pricing;
gateway -> payments;

trips -> pricing;
trips -> users;

pricing -> users;
pricing -> trips;
} — Comunication between microservices.

Warning

The proposed flow of data might neither optimal nor best. We were learning microservices as we developed the entire project from scratch.

The Gateway is the only entrypoint to the application’s backend. All other microservices being in the same datacenter enables low respsonse time between microservices. In a real world scenario, proxy servers should be deployed around the world if we want to reduce latency.

API Gateway

In the API Gateway, all microservices are coordinated to provide a single access to the application. Users and admins consume the Gateway’s API using the mobile app and the backoffice.

Having a gateway opens the possibility of replicating multiple instances for load balancing (stateless is key here). Besides, the average round trip time can be significantly reduced.

Users

All users, be admins, drivers or riders, are managed here. Data such as:

Usernames
Preferred location addresses
Car manufacturers, colors and models

is stored using a relational database.

Trips

Here we orchestrate trips between drivers and riders. A rider requests a trip, and a driver takes it. Real time information such as driver’s current location and trip state is provided to ensure a seamless user experience.

Other functionality related to trips, for example geocoding, is handled here. What’s more, the polylines to be drawn both in the rider and the driver’s map is generated in this microservice.

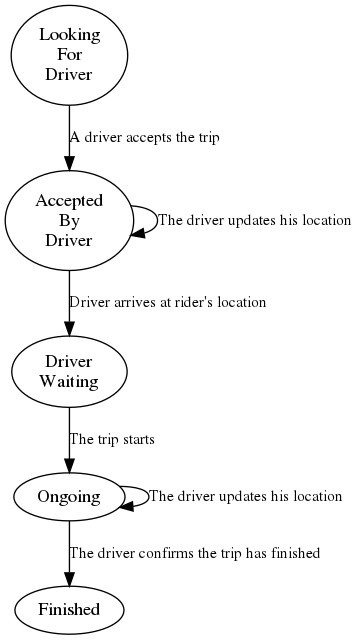

Let’s take a look at trip states. Although the state machine for a real application would be much more complicated, the basic flow should be something like:

digraph {
lfd [label="Looking\nFor\nDriver"];
abd [label="Accepted\nBy\nDriver"];
dw [label="Driver\nWaiting"];
og [label="Ongoing"];
f [label="Finished"];

lfd -> abd [label = "A driver accepts the trip" fontsize="12pt"];
abd -> abd [label = "The driver updates his location" fontsize="12pt"];
abd -> dw [label = "Driver arrives at rider's location" fontsize="12pt"];
dw -> og [label = "The trip starts" fontsize="12pt"];
og -> og [label = "The driver updates his location" fontsize="12pt"];
og -> f [label = "The driver confirms the trip has finished" fontsize="12pt"];
} — Flow of possible trip states.

The distinction of who accepts or updates the state might sound obvious or redundant at first, but it’s more future proof if we want to support cancellations or more thorough validations in the future.

Pricing

Trip prices are calculated using a set of configurable rules. These rules can also be evaluated before activation. Currently, 4 parameters are taken into account:

Total trip distance
Trip time
The driver’s rating
The completed trips in the last 30 minutes for the driver

For price estimation, the las two metrics are considered to be 3.5 stars and 0 respectively.

Payments

Here’s where transactions are made. Smart Contracts implemented in Solidity, using Goerli’s testnet, allow creating wallets, payments and withdrawals in result of trips completion. So, drivers make and withdraw money using the app.

Newcomers are granted 0.03 ETH at registration time to incentivate using the app. A value of 20% is set as FIUBER’s comission for using the app.

Payments, granted the trip has ended, are made from the user’s wallet to the driver’s, applyoing the previously mentioned fee.

Note

Transaction listing and general metrics are also implemented here, inside this microservice
